Plastic pollution has become one of the most pressing environmental issues of our time, impacting our oceans, wildlife, and even our health. Every year, millions of tons of plastic waste end up in the environment, taking hundreds of years to decompose. However, technology offers a promising solution through plastic recycling machines, which play a crucial role in tackling this crisis by transforming waste into reusable materials.

Introduction to Plastic Recycling Machine

Plastic recycling machines are innovations designed to reduce plastic waste by converting discarded plastics into useful products. These machines are essential in the recycling process, helping to alleviate the burden on landfills and reduce the need for new raw materials. By processing used plastic, we can lessen environmental pollution and promote a circular economy where materials are reused rather than disposed of.

Types and Functions of Plastic Recycling Machines

There are several types of plastic recycling machines, each serving a specific function in the recycling process. Understanding these machines helps us appreciate how they contribute to environmental sustainability.

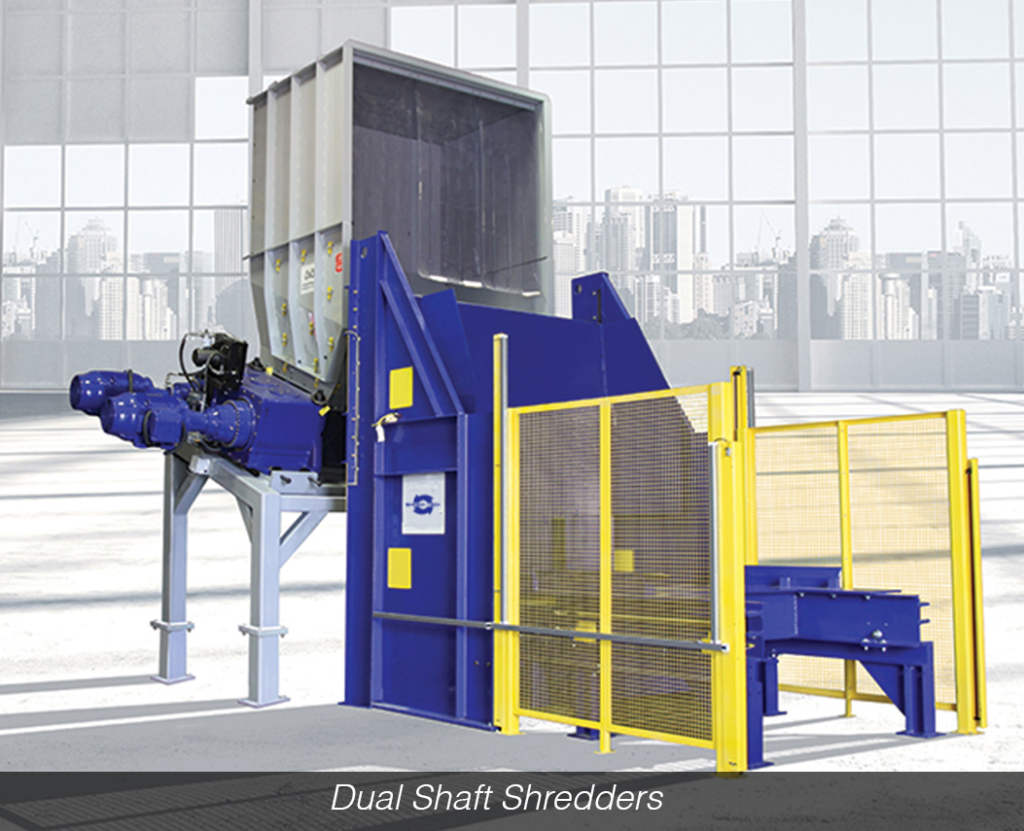

1. Shredders

Shredders are powerful machines used to break down large pieces of plastic into smaller fragments. This process is crucial because smaller pieces of plastic are easier to handle and process in the subsequent stages of recycling. Shredders use a series of blades to cut the plastic into chips or flakes, which are then ready for further cleaning and processing.

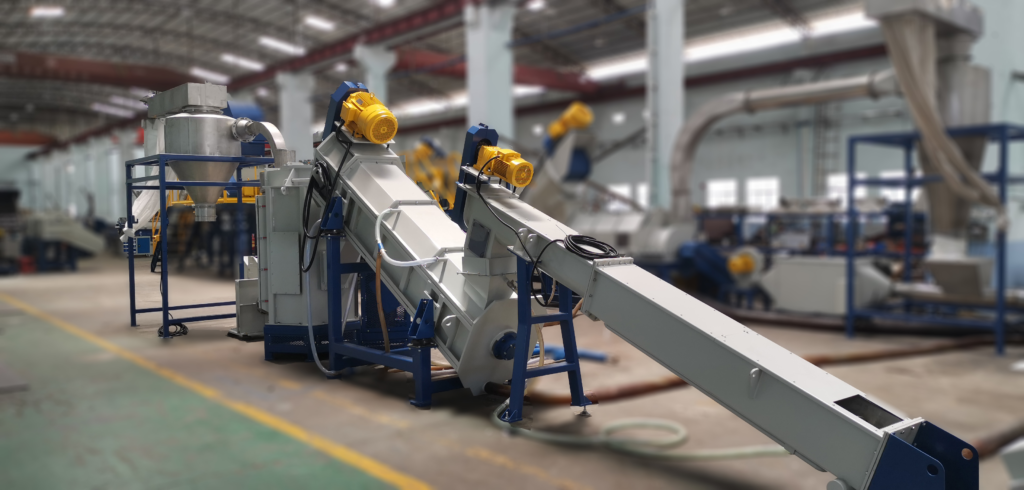

2. Washing Lines

After shredding, the plastic fragments often contain impurities such as food residue or dirt. Washing lines come into play here, cleaning the shredded plastic thoroughly. These machines use water and detergents to remove contaminants, ensuring that the plastic is pure before it moves to the next stage of recycling. Clean plastic is crucial for the quality of the final recycled product.

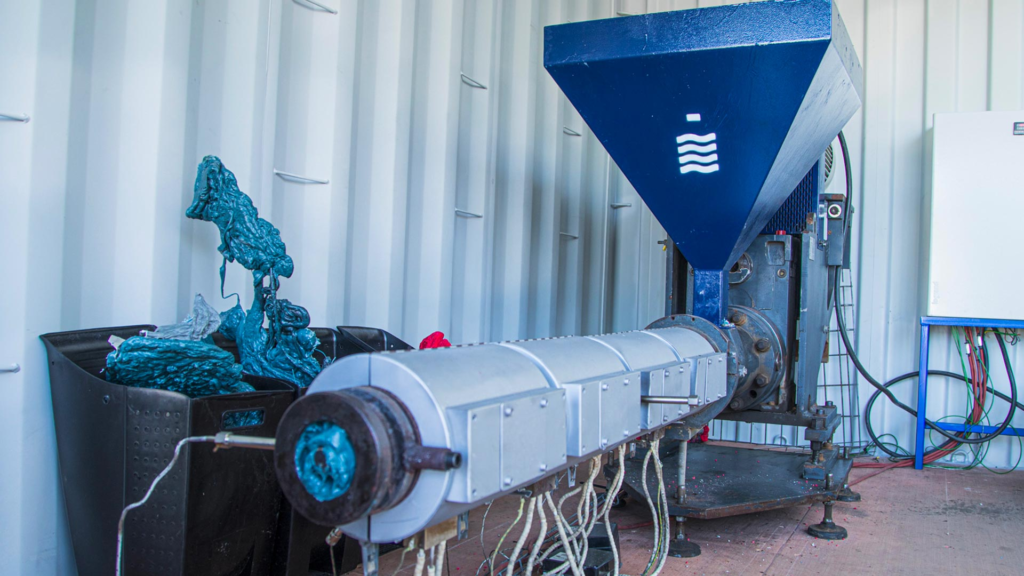

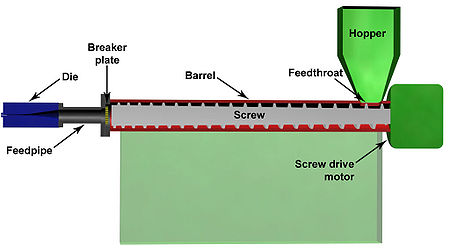

3. Extruders

Extruders are key components in the recycling process. They melt the clean, shredded plastic and then extrude it through a die to form new plastic pellets. These pellets can be used to manufacture new plastic products, completing the recycling loop. Extruders operate at high temperatures, which helps to sterilize the plastic, ensuring that the final products are safe for use.

Operational Processes

The operational process of these machines is interconnected, forming a complete recycling line. Here’s how it typically works:

1. Collection and Sorting: The first step in the recycling process is collecting and sorting the waste plastic. Plastics are sorted based on their type and color to ensure compatibility during recycling.
2. Shredding: Sorted plastics are fed into shredders where they are broken down into smaller pieces that are easier to process.
3. Washing: The shredded plastics then pass through washing lines where they are cleaned to remove impurities, preparing them for melting.
4. Extruding: Clean and dried plastic flakes are fed into extruders where they are melted down and formed into pellets, which are then ready to be reused in making new plastic products.

By understanding the types and functions of plastic recycling machines, we can better appreciate the technology’s impact on reducing plastic waste. These machines are not just mechanical tools; they are essential instruments in our ongoing battle against plastic pollution, helping to preserve our environment for future generations. As technology advances, the efficiency and effectiveness of these recycling processes will continue to improve, further enhancing our ability to manage plastic waste sustainably.

Steps and Technological Processes in Plastic Recycling

The process of recycling plastics is intricate and requires a series of steps, each crucial for transforming waste into reusable materials. These steps include collection, sorting, cleaning, shredding, melting, and pelletizing. Below, we’ll explore how various machines are integral to these processes and examine the technological complexities and challenges encountered at each stage.

Collection

The journey of recycling begins with the collection of plastic waste. This includes gathering plastics from households, businesses, and public spaces. Effective collection systems are vital, as they determine the quantity and quality of plastic entering the recycling stream. The challenge here lies in educating the public on proper disposal methods and developing efficient collection logistics to ensure that plastics are collected without contamination.

Sorting

Once collected, the plastics must be sorted. This step is critical because different types of plastics—such as PET, HDPE, and PVC—melt at different temperatures and have distinct recycling requirements. Advanced sorting machines, equipped with infrared technology and other scanning systems, automatically identify and separate plastics based on their resin content and color. The challenge in sorting is dealing with mixed plastics and non-plastic materials that can disrupt the recycling process if not properly segregated.

Cleaning

After sorting, the next step is cleaning the plastics to remove impurities such as food residue, labels, and adhesives. This process typically involves granulators and wash lines that use water and detergents to clean the shredded plastic. The key challenge here is ensuring that all contaminants are removed, as any residue can degrade the quality of the recycled material.

Shredding

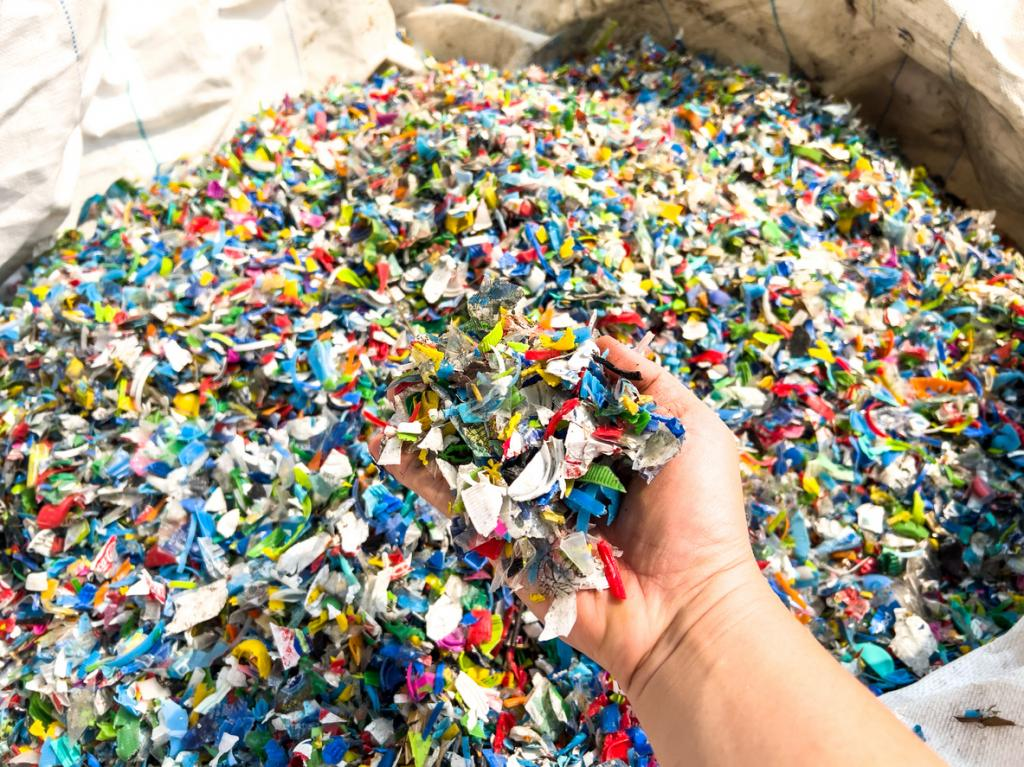

Shredding reduces the size of plastic waste into smaller, manageable pieces. Shredders use sharp blades to cut the plastic into flakes or granules. This step is essential because smaller pieces have a larger surface area, making subsequent processes like washing and melting more effective. The technological challenge in shredding involves dealing with plastic items that contain metal parts or other materials that can damage the shredder blades.

Melting

Melting involves heating the clean, shredded plastics to transform them into a homogenous liquid state. This process is conducted in extruders, which apply heat and pressure to melt the plastic. The melted plastic must be carefully controlled in terms of temperature and timing to ensure uniformity and prevent degradation of the polymer chains. The main challenge in melting is adjusting the process parameters to accommodate different types of plastics.

Pelletizing

The final step in the recycling process is pelletizing, where melted plastic is extruded through a die and cut into small pellets. These pellets are then cooled and packaged for sale to manufacturers who use them to produce new plastic products. Pelletizing machines must be precise in cutting and cooling to produce high-quality pellets that meet industry standards. A challenge here is ensuring the pellets are uniform in size and free from any impurities.

Installation and Maintenance of Plastic Recycling Machines

Installing and maintaining plastic recycling machines are critical aspects of running a successful recycling operation. Below are practical insights into the setup, maintenance, and troubleshooting of these machines.

Installation

The installation of plastic recycling machines involves several steps:

1. Site Preparation: The facility must be prepared to handle heavy equipment, including ensuring adequate space, power supply, and water access.
2. Assembly and Setup: Machines are typically shipped in parts and require professional assembly. Technicians must follow the manufacturer’s guidelines to assemble and calibrate the machines correctly.
3. Testing: Before full-scale operation, machines should be tested with a small batch of plastic to ensure they are functioning as expected.

Maintenance

Routine maintenance is vital for the longevity and efficiency of recycling machines. Maintenance tasks include:

• Regular Cleaning: Machines should be cleaned regularly to prevent buildup of plastic residue and contaminants.
• Lubrication: Moving parts require lubrication to operate smoothly and prevent wear.
• Part Inspections: Frequent inspections are necessary to check for wear and tear on blades, belts, and other components.
• Software Updates: For machines with automated systems, keeping software updated is crucial for optimal performance.

Troubleshooting and Care

Effective troubleshooting requires operators to understand common issues that might arise, such as jams, temperature inconsistencies, or mechanical failures. Having a detailed operation manual and training for staff on troubleshooting procedures can dramatically reduce downtime. Moreover, establishing a routine maintenance schedule and keeping a stock of essential spare parts on-site ensures that the recycling process runs smoothly with minimal interruptions.

By thoroughly understanding each step of the recycling process and maintaining the machinery involved, facilities can maximize their output of high-quality recycled plastic, contributing significantly to environmental sustainability.

Economic and Environmental Benefits of Plastic Recycling Machines

The adoption of plastic recycling machines not only promotes environmental sustainability but also offers significant economic benefits. These benefits include cost savings from reduced raw material and disposal costs, potential revenue from recycled products, and long-term profitability through sustainable practices.

Economic Benefits

1. Reduced Raw Material Costs: By recycling plastic waste, manufacturers can significantly reduce their dependency on virgin materials, which are often more expensive than recycled materials. This reduction in material costs is one of the primary drivers for companies to invest in recycling technology.
2. Increased Efficiency: Modern plastic recycling machines are designed to be highly efficient, reducing energy consumption and operating costs. The increased efficiency translates into lower production costs, making businesses more competitive in the market.
3. Revenue from Recycled Products: Recycled plastics can be sold to manufacturers who use them in various applications, from packaging to automotive parts. This not only creates a new revenue stream but also helps in building a circular economy.
4. Compliance with Regulations: Many regions are imposing strict regulations on waste management and recycling. Investing in recycling machinery helps companies comply with these regulations and avoid fines or penalties.
5. Enhanced Brand Image: Companies that actively engage in recycling initiatives often see an improvement in their brand image and customer loyalty, as consumers are increasingly favoring environmentally responsible companies.

Environmental Benefits

1. Reduction in Waste Emissions: By recycling plastic waste, less of it ends up in landfills or incinerators, leading to a significant reduction in methane emissions from landfills and harmful emissions from burning.
2. Conservation of Resources: Recycling reduces the need for extraction of new raw materials, conserving resources and minimizing the environmental footprint associated with mining and extraction.
3. Energy Savings: Producing products from recycled plastics often requires less energy compared to producing the same product from virgin materials. This energy saving leads to a reduction in overall carbon emissions.
4. Biodiversity Protection: By reducing the need to extract new raw materials, recycling helps in preserving natural habitats and protecting biodiversity.

Global Case Studies

Several global case studies highlight the effective use of plastic recycling machines and the positive outcomes associated with these initiatives.

Case Study 1: PET Recycling Plant, Switzerland

A facility in Switzerland specializes in recycling PET bottles, turning them into high-quality food-grade PET flakes. The plant uses advanced sorting and washing technology to ensure that the recycled PET meets strict hygiene standards required for food packaging. The success of this facility lies in its integration of sophisticated machinery with meticulous quality control processes.

Lessons Learned:

• Importance of technology in meeting quality standards.
• The need for strict process controls to produce high-grade recycled materials.

Case Study 2: HDPE Recycling Operation, USA

In the United States, a large-scale operation focuses on recycling HDPE plastics used in milk jugs and detergent bottles. The facility has perfected its sorting and cleaning processes to handle large volumes efficiently. The recycled HDPE is then sold to manufacturers of plastic lumber and outdoor furniture.

Lessons Learned:

• Scalability of recycling operations to handle large volumes.
• Development of a market for recycled products is crucial for the sustainability of recycling operations.

Case Study 3: Mixed Plastics Recycling, Japan

Japan has developed innovative technologies to recycle mixed plastics that are difficult to process. Through chemical recycling, these plastics are converted back into oil, which can then be used to produce new plastic products. This approach not only manages waste that would otherwise be unrecyclable but also reduces oil consumption.

Lessons Learned:

• Innovation in recycling technology can provide solutions for handling complex waste.
• The potential of chemical recycling in managing mixed and contaminated plastics.

These case studies demonstrate not only the feasibility of using plastic recycling machines effectively but also the broad range of environmental and economic benefits that can be achieved. By learning from these successes, other countries and companies can implement and improve their recycling strategies, contributing to global sustainability efforts.

Future Prospects and Challenges

The future of the plastic recycling industry is poised for growth, driven by technological advancements, increasing regulatory pressures, and shifting consumer behaviors. However, substantial challenges need to be addressed to maximize the potential benefits of plastic recycling technologies.

Future Trends

1. Advanced Sorting Technologies: Innovations in sorting technology, such as AI and machine learning, are expected to improve the efficiency and accuracy of plastic sorting, allowing for better separation of plastic types and reduction of contamination.
2. Chemical Recycling: This emerging technology, which breaks down plastics to their chemical components, offers a solution for recycling plastics that are currently non-recyclable through mechanical processes. It has the potential to revolutionize the plastic recycling industry by turning waste into valuable raw materials.
3. Biodegradable Plastics: The development and use of biodegradable plastics could reduce the dependence on traditional plastics and improve the manageability of plastic waste, aligning with circular economy principles.
4. Global Expansion of Recycling Facilities: As more countries adopt stricter waste management and recycling policies, the demand for advanced recycling facilities is likely to increase, promoting a more global approach to plastic recycling.

Challenges

1. Technological Limitations: Despite advances, recycling technologies still face limitations, particularly in handling mixed or heavily contaminated plastics, which can hinder the quality and viability of recycled products.
2. Regulatory Policies: Inconsistent and evolving regulatory frameworks across different regions can complicate the operations of recycling companies, requiring them to adapt continually to new standards and practices.
3. Market Acceptance: The demand for recycled plastics can be unstable, influenced by economic factors and competition from cheaper virgin materials. Creating stable markets for recycled products is crucial for the sustainability of the recycling industry.
4. Financial Constraints: High initial investments for state-of-the-art recycling facilities and ongoing operational costs can be prohibitive, especially for startups and smaller companies.

Conclusion

Plastic recycling machines are indispensable tools in our fight against plastic pollution. By converting waste into valuable materials, these machines not only mitigate the environmental impacts associated with plastic disposal but also contribute to the conservation of resources and reduction of greenhouse gas emissions. Their role in fostering a circular economy is vital, as they enable the reuse of materials and reduce our reliance on virgin resources.

To continue advancing in this field, broader social participation and technological innovation are essential. Consumers, businesses, and governments must collaborate to enhance recycling practices and develop new technologies that overcome current limitations. Support for research and investment in more efficient and versatile recycling solutions will drive the industry forward, making the recycling of all types of plastics more feasible and economically viable.

By embracing these challenges and opportunities, we can ensure that plastic recycling machines continue to play a critical role in sustainable environmental development, helping to create a cleaner, greener, and more sustainable future for all.

<p>The post Comprehensive Guide to Plastic Recycling Machines first appeared on JIANTAI.</p>

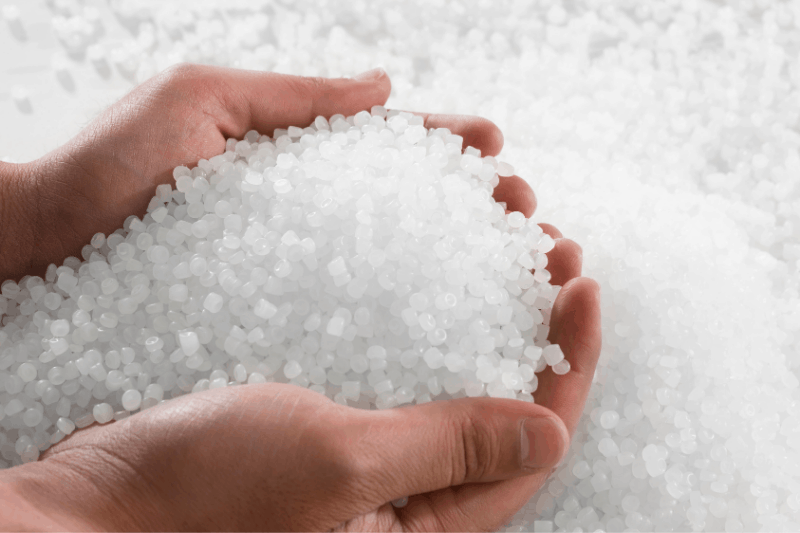

Recycling of PP pellets not only reduces the environmental impact of plastic waste, but also provides economic benefits by conserving natural resources and energy. In this paper, the various aspects of optimizing the PP pellet recycling process are discussed in depth, the machinery and equipment involved are described, and recommendations are made to improve efficiency and sustainability.

Understanding the PP Plastic Recycling Process

The recycling process for PP plastic pellets typically involves several stages, each playing a crucial role in ensuring the quality and purity of the recycled material. The primary steps include:

Collection and Sorting

Proper collection and sorting of PP plastic waste are essential to minimize contamination and ensure a high-quality recycling process. Advanced sorting technologies, such as near-infrared (NIR) spectroscopy and optical sorting systems, can effectively identify and separate PP plastics from other materials.

Grinding and Shredding

The collected PP plastics are then subjected to size reduction through grinding or shredding, breaking them down into smaller pieces or flakes. This step facilitates the subsequent melting and extrusion processes.

Washing and Drying

Impurities, such as labels, adhesives, and contaminants, are removed from the shredded PP plastic through a thorough washing process. This step is crucial for ensuring the purity and quality of the recycled material. After washing, the plastic flakes undergo a drying process to remove any residual moisture.

Melting and Extrusion

The cleaned and dried PP plastic flakes are melted and extruded through a die to form continuous strands or pellets. This step requires precise temperature control and specialized machinery to ensure the desired physical and mechanical properties of the recycled PP pellets.

Machinery and Equipment for Optimized PP Plastic Pellet Recycling

The efficiency and quality of the PP plastic pellet recycling process heavily rely on the machinery and equipment employed. Here are some essential machines and their roles:

Sorting Systems

Advanced sorting systems, such as NIR spectroscopy and optical sorters, play a pivotal role in accurately identifying and separating PP plastics from other materials. These systems rely on sophisticated sensors and algorithms to detect material properties and ensure high-purity sorting.

Shredders and Grinders

Robust shredders and grinders are essential for breaking down PP plastic waste into smaller pieces or flakes. Various types of shredders, including single-shaft, double-shaft, and rotary shredders, can be employed depending on the specific requirements and the nature of the PP plastic waste.

Washing and Drying Systems

Efficient washing systems, such as friction washers, float-sink tanks, and hydrocyclones, remove contaminants and impurities from the shredded PP plastic flakes. These systems may incorporate chemical treatments, agitation, and filtration to achieve thorough cleaning. Drying systems, including centrifugal dryers and thermal driers, ensure the complete removal of moisture before the melting and extrusion stage.

Extruders and Pelletizers

Extruders are critical machines in the PP plastic pellet recycling process. They melt and homogenize the cleaned and dried PP plastic flakes, allowing for the formation of continuous strands or pellets. Pelletizers, often integrated with extruders, cut the extruded strands into uniform pellets, ready for further processing or reuse.

Recommendations for Optimizing PP Plastic Pellet Recycling

To enhance the efficiency and sustainability of PP plastic pellet recycling, several recommendations can be considered:

Invest in Advanced Sorting Technologies

Implementing advanced sorting technologies, such as NIR spectroscopy and high-resolution optical sorters, can significantly improve the purity and quality of the sorted PP plastic waste. These technologies minimize contamination and ensure a more streamlined recycling process.

Optimize Washing and Drying Processes

Thorough washing and drying are critical for producing high-quality recycled PP pellets. Continuous monitoring and optimization of these processes, including the use of appropriate chemical treatments, agitation methods, and drying temperatures, can enhance the removal of contaminants and moisture.

Implement Closed-Loop Recycling

Adopting a closed-loop recycling approach, where the recycled PP pellets are reintroduced into the production process for new PP products, can significantly reduce the demand for virgin PP and promote a circular economy. This approach requires close collaboration between PP manufacturers and recyclers to ensure the quality and consistency of the recycled material.

Explore Alternative Recycling Methods

While traditional mechanical recycling is widely adopted, exploring alternative recycling methods, such as chemical recycling or advanced thermal processes, could potentially unlock new opportunities for PP plastic waste valorization. These methods may be particularly suitable for handling highly contaminated or mixed plastic waste streams.

Foster Collaboration and Knowledge Sharing

Collaboration among stakeholders, including PP manufacturers, recyclers, researchers, and policymakers, is crucial for driving innovation and promoting best practices in PP plastic pellet recycling. Knowledge sharing and the dissemination of research findings can accelerate the adoption of optimized processes and technologies.

Encourage Recycling Incentives and Regulations

Governments and regulatory bodies can play a vital role in promoting PP plastic pellet recycling by implementing incentives, such as tax credits or subsidies, for recyclers and manufacturers that embrace sustainable practices. Additionally, stringent regulations and policies regarding plastic waste management can drive the adoption of recycling initiatives.

Summary:

PP plastic pellet regeneration is a comprehensive process that requires advanced machinery and equipment, optimized processes, and full cooperation among stakeholders. This article suggests that PP pellet recycling requires investment in advanced sorting technology, optimization of the washing and drying process, exploration of the potential of the PP pellet recycling industry, and the development of new technologies.

<p>The post Optimizing PP Plastic Pellet Recycling: Machines and Process Recommendations first appeared on JIANTAI.</p>

Table of Contents

Introduction

The high level of global plastic use has led to an increasing procurement of discarded post-consumer plastic material, and there is a demand for a process strategy to best depolymerize and repolymerize it. Here, we are concentrating on the reprocessing of post consumer used plastics into consumer products, using the various reprocessing methods which are possibly available for a new venture business. With the usage of this reprocessed plastic material, there exists methods to physically recycle the plastic into a direct form of consumer product, these methods exploit the plastic’s thermoplastic nature. A further method of recycling plastics is from an energy recovery approach, using the depolymerization process to break the polymer bonds and recover the low level energy value of various plastic materials. Whether using the latter energy recovery method to downcycle the plastic material into a fuel form, or the process of repolymerization to make a higher quality recyclate, both methods have the potential to save the environment from vast amounts of pollution caused by the careless disposal of plastics and reduce the industry’s demand for high levels of plastic production and the usage of fossil resources. The method choice greatly varies depending on factors like to which extent plastic material is to be recycled, the available funding, and the type of plastic material to be worked with. Due to the multiple forms of reprocessing methods, we have investigated machine concepts and strategies to accommodate the various methods, using said machines to best adapt and recycle plastic materials into forms suitable for further use.

Machine Selection

Reprocessing plastics will require machinery designed for the specific polymer type. The Society of the Plastics Industry has identified seven different plastic types (SPI Code) that may be present in the waste stream. It is a tough challenge to recycle plastics together due to the seven different resin identification codes, which is why sorting is usually preferred when recycling plastics. An extensive study was conducted to compare the compatibility of mixing different plastic types for the purpose of recycling. It was found that when recycling plastics within the same resin family (e.g. mixing some RPET and G-PET), the physical properties of the polymer are not significantly changed. This is due to the fact that polymers of the same family are likely to have similar chemical structures and melting points. The results will vary, however, when attempting to recycle two different plastic types. When heated above their melting point, polymers undergo a phase change wherein they go from solid to liquid. Upon subsequent cooling below the melting point, the polymer will solidify in a new shape or form, a process similar to ice melting and re-solidifying. Heating and cooling is a simple concept used in forming plastic parts and is also a primary method in recycling and regrinding plastics. If two different plastic types are mixed during the regrind process, the two will undergo phase change and likely solidify in a random blend of the two shapes. This may have detrimental effects on the physical properties of the plastic, taking away from its quality and potential uses. Whether or not this is an issue to a specific industry will determine how critical it is to use machinery for a specific plastic type.

Once the decision to recycle plastics is final, the next choice an entrepreneur faces is what type of recycling machinery to utilize. One of the ways to avoid this decision is to consider contracting a plastics recycling company that will process the material and return it to the producer. While this is an option, it can be extremely costly in the long run, taking away from the benefit of recycling by cutting into the potential revenues. The alternative is to purchase recycling machinery or, in some cases, refurbish used machinery. This decision is also not so cut and dry and is by no means simple. It is best to start with an analysis of the available recycling machinery along with a comparison of different machines and vendors. Ask the supplier if they have a technical data sheet of their machinery; this is a good way to start collecting information.

Capacity Considerations

When selecting the proper machine for plastic recycling, the primary consideration is the proportion of material you intend to process per unit time. If you are looking to recycle a very small quantity of material, the best recycling equipment to start with may be a simple granulator. This is a low-cost way to begin, and the material can be reprocessed into new consumer products at a later date. If a large quantity of material is to be processed, a more complex and higher output system is recommended. For example, a small to medium-sized recycler processing 10,000 lbs per day of mixed plastic waste may choose the following equipment configuration: 2 x 1000 lb/hr reclaim extruders, to produce roll stock sheet in-house, and 1 x 500 lb/hr reclaim extruder to reprocess its own internal waste. In this case, the customer would be considering the output capabilities of the machines to be purchased. If he were to buy 3 of the same 1000 lb/hr extruders, it would limit his flexibility and possibly his future growth, as he would not be able to reprocess other materials at a lower input cost. Matching the machine to the job activity that it must do is very important when considering machine output. A common mistake for a recycler is to purchase a machine with an output larger than what is necessary and assuming they can run it at full capacity to maximize payback. This may result in a less desirable product, higher reject rates, and difficulty in processing. Always look at the rate of the machine specified with the type of material to be processed. If there is any doubt, trial the material at 1/4 rate higher than the minimum required to give allowance for screw and press wear over time.

Material Compatibility

During washing processes, different plastics are subjected to various temperatures and caustic chemicals. Although the goal of cleaning the material is consistent across all types, the ramifications of the cleaning process differ greatly depending on the polymer. For example, PET is stable at lower temperatures with hot water, whereas PVC plastic becomes pliable. Washing PVC in this manner makes it difficult to remove contaminants because the plastic will tend to absorb liquid and swell. This is a common problem with many of the thermoplastic polymers. The mechanical action of the process is also very important. Friction washers are good for some plastics but often produce a large amount of ground plastic, making them unsuitable for many recycling processes. The ground plastic is often difficult to clean and results in a lower quality end product. Other plastics can be cleaned very effectively with hydrocyclone separators, but the high density of PET makes it difficult to float and thus separate using wet gravity methods. Avoiding over-exposure of the cleaned material to heat is the best practice. The drying of the material is also important. Polyester and PS can be dried at around 180-200°C, and for a very short time, whereas higher temperatures can cause thermal degradation. Step splayed twin screw extruders can effectively dry the material at lower temperature by increasing the surface area through conveyance in a vacuum. Overall, being able to run all the cleaned material through a single type of machinery is most effective in terms of both cost and end product quality. A thorough understanding of the behavior of polymer during washing and cleaning processes is important in order to be able to provide a system which effectively cleans the material and avoids damage.

Energy Efficiency

Finally, while implementing previous measures to check the energy used by a specific machine, it is important to monitor the overall energy usage of a plant and the machines within it. This will prevent damage to the environment from unchecked energy use and, more importantly, find if any change in machinery or process has had adverse effects.

Choosing energy-efficient machinery is a more straightforward process today, as high-efficiency equipment is becoming the industry standard. A generic approach to machine comparisons can be formed using energy costs and the use of energy performance indicators. An example of this is a study which compared injection molding machines by recording the energy required to produce one complete cycle of the machine. The machines were then rated by energy cost per cycle and categorized by size. A regression analysis found a correlation of machine size to energy efficiency, with a guideline of the large machine energy cost being 11% above the mean for each size category, all the way up to a massive 58% of small machine energy cost. The costs from this analysis can be loaded onto part costs, giving consumers clear information as to how energy efficient the machine being used is and where money can be saved. With the fast rate of new technology emergence, machines should be checked for efficiency at regular intervals to ensure that energy and money are not being wasted.

The aim of reducing energy consumption of machines is available capital in the form of money and energy. The most common measure of this is the capital cost per output capacity. An example from a processing plant which was designed to process 100,000 tonnes per year of extrusion grade HDPE using 7 machines, each with a 400-tonne screw capacity. The old design used standard AC motors and on/off controls on the machines. The conventional wisdom in the industry was that an output rate to screw capacity ratio of 20 was needed. This would dictate 15 machines, each with a 2000-tonne screw capacity. These would have been energy exorbitant, but instead high torque/low-speed screws were used, pushing the output ratio up to 30 for the same screw capacity. Using more energy-efficient motors, a power consumption of 0.12 kWh/kg was recorded, giving a total of 20 MWh. If paralleled with the first design, less energy would have been used despite the new design being cleaner and more energy efficient. This is because higher output rate machines inherently use less energy per unit throughput.

Machine Setup and Installation

Adequate space must be prepared according to the recycling machine’s specifications. Typically, a hard level surface is required with at least 2-3 meters clearance around the machine for operational and maintenance purposes. Standard incoming material conveyors are adjustable to suit the best height for feeding material into the machine. It is important to have the conveyors matching the machine height to prevent inclining conveyors. Incoming material from an incline conveyor does not feed consistently and can cause unnecessary wear to high friction machine feed components. Space should be considered for optional equipment such as feed conveyor metal detectors and discharge conveyors, as it is likely these options may be installed at a later date. High-speed machines and machines with large feed components such as sheet and large pipe may require the material to be pre-cut to suit the feed width. This can be achieved in an area external to the machine; however, it should be close by with easy access for the operator.

Section 3 for machine setup and installation provides valuable information for preparing to install a plastic recycling machine. These are general guidelines that best fit all machine types and must be followed unless specified by local regulations or the machine itself.

Location Requirements

The machine weighs a maximum of 9800 pounds (4445 kg). This includes everything: the hydraulic power unit, control unit, mechanical sorter, and the entire main unit and its components. The floor that the machine sits on must be able to support this weight. Failure to provide stable construction may cause the machine to shift during operation or machine maintenance. This may lead to undesirable machine operation and component malfunction. A level machine must be ensured with a maximum 2.5° tilt in any direction. This is to avoid machine operation problems and component malfunction. Any slope exceeding this limit will cause the machine to tilt, thus causing improper component operation or, worse, machine component damage.

Overhead clearance of 1 meter is the minimum size required. This is given for the ease of opening the machines and separating the components, and also to avoid the failure of the mechanical sorter, as it requires maximum space. The compressed air quality should be clean, dry compressed air of at least 110 psi. This is used in many components of the system, but the most air is consumed by the mechanical sorter, which has a maximum requirement of 45 cfm. The remaining air is used for the pneumatic valves used for process control. Since the mechanical sorter requires the most air in the entire system, an air quality of 110 psi and 45 cfm is necessary. An air demand higher than specified may cause the sorter to fail. During an abrasive separation trial, it was found that the higher the air pressure for the mechanical sorter, the better the separation efficiency. An air compressor with a 10 hp motor should be suitable for this air requirement.

Electrical Connections

A qualified electrical technician familiar with National, State, and Local codes should make the electrical connections. All wire connections must be tight and should be soldered and insulated to ensure safe and reliable operation. The integrity of the ground path must not be defeated. It is recommended that all printed wire boards have proper surge protection devices installed on the input power lines to protect against electrical damage of the printed wire board from external sources. A switch-type noise filter is recommended to suppress electrical noise generated by the machine and to protect other nearby equipment. Failure to do this could, in some cases, cause peripheral failure. Step-type voltage regulators (boost or buck-type transformers) may be needed in locales where the input voltage supply is not stable. It should be noted that static discharge can cause damage to electronic printed wire boards.

It is the responsibility and duty of the customer to carry out all necessary work to accommodate the electrical connections. Most of the standard machines have basic electrical requirements, excluding the Hopper Dryer Renew Unit, Sheet & Film Waste Recycling Ranges, Laboratory and Blown Film Waste Recycling Machines, which have specific requirements. These requirements would be discussed at the time of order if required. Please ensure all work is carried out by a qualified electrician and conforms to all municipal, provincial, and state laws. Also, ensure that the electrical connections are switched off before making any connections to the machine.

Safety Measures

All moving sections are enclosed to prevent unexpected accidents. Sensors are installed in the conveyor to stop the conveyor when it is overloaded. Emergency stop switches are provided at easy-to-access locations at the conveyor and the shredder/granulator. These steps are taken to safeguard workers when any repair or maintenance is performed, to ensure the worker is not accidentally injured when the machine starts up. Voltage monitoring relays are used to determine if there are any faults in the electrical system. This is to prevent any unexpected machine start-up due to voltage fluctuation. Last but not least, all control systems are designed with fail-safe relay logic. This is to ensure that all machines will automatically shut down in a safe manner when any fault is detected in the control system. By doing this, it will eliminate all possibilities of unexpected machine start-up due to electrical system errors. This will greatly reduce the accident level at the workplace. Safety is always a concern for everyone involved. With all the safety features, we ensure that our plastic recycling machines are safe to be operated and their reliability will ensure the safety of workers maintaining them in the long run.

Operating Procedures

Minimize the generation of waste by using the regrind and/or scrap in the same form it was produced before the waste. It may be necessary to requalify the use of the material for a particular application. If it is not feasible to process the reclaimed material, contact a similar processing application that can use the material. If the material is to be sold, post-consumer material sources may have requirements for the material quality. It is necessary to dry reclaimed material before processing. Follow processing recommendations from the material supplier or visit the website listed on the material container. Failure to process material at the recommended conditions may cause degradation and will limit the number of times the material can be processed.

If the machine temperature operates at ambient, make sure the machine heats up to a process temperature before attempting to extrude or inject plastic. The information is available from the Environmental, Health and Safety Committee. Water follows this information; this will minimize the amount of energy usage. If the machine will be down for an extended period of time, turn off the process heat for the barrel and unplug the machine from the power source. This is important in saving energy and ensuring safety in case someone mistakenly attempts to turn on the machine while it is not in operation. During the machine shut down scope, make note if there are any machine components that need repair or service. This will help to schedule an organized shutdown at a later time.

Start-up and Shutdown

First time starting up or after a long period of machine inactivity, it is advisable to manually rotate the extruder and increase the screw RPM speed to ensure no residual moisture is present in the material, preventing it from getting stuck and possibly damaging the barrel and screw. This step is particularly crucial for vented extruder systems.

Ensure the working area is clean and safe. Check and ensure there are no raw materials in the extruder/injection unit, which means the last job’s clean-out procedure was done thoroughly. Check and ensure all the control switches and buttons are in the “off” position. Check the hydraulic unit, if available, and ensure its fluid levels are sufficient. Turn on the main switch, wait for the machine to initialize, then turn on the temperature controllers. For recycling machines, the temperature controllers should be set at about 10-20 degrees lower than the melting temperature of the material to prevent unnecessary temperature heating and prolong the lifespan of heating elements and the screw. (e.g. The melting temperature of PP is 210-270°C, so the temperature setting should be around 200°C) Step 1: Warm up the extruder/injection unit.

Start-up Start-up procedures may vary according to different machine manufacturers, but all of them should strictly follow the machine operation manual, which should also be the basis for finalizing standard operating procedures. Following are some general standard operating procedures for starting up plastic recycling machines.

Material Handling

Flake materials can experience degradation and/or may have a wide range of bulk density. In these cases, a dense phase pneumatic conveying system can be utilized to minimize damage. This is a slower, more controlled conveying method and it uses a lower air pressure and a high material-to-air ratio. A well above the entry port on the storage silo allows for a vertical drop which, in some cases, can help minimize the distance required for horizontal conveying and prevent line plugs. An air filtration assembly with a small receiver drum can be located at the end of the convey line in order to reclaim conveying air, and there will be a short vertical leg coming off of the line with a sweep elbow. This allows for conveying of different materials in the same line by minimizing contamination between changeovers.

Material handling systems will depend greatly on the type of materials to be used. For plastic recycling, material will be in the form of washed flake or regrind, just conveyed into the storage silo. First, consider the regrind. This material is often bought in gaylord boxes and usually has some sort of contamination. In a typical system, a tool receiving hopper is used. It can be as basic as a feed hopper with an agitator and a slide gate. An agitator and/or vibratory pan feeder are located above the hopper and are used to provide positive force on the material to feed it into the rotor of the small. In some cases, the tool will be ground down into small flakes. This can be accomplished using a low-cost screen with the appropriate size, or the flakes can be produced from the beginning. This type of material can often be pneumatically conveyed into the storage silo.

Machine Maintenance

What tasks need to be performed and how often? The manufacturer of the recycling equipment often provides specific recommendations in the equipment manual. However, based on the type of equipment and the operating conditions, specific tasks and frequency may need to be customized. A comprehensive list of equipment and maintenance tasks to consider is provided, though it may not apply to all situations. This list may serve as a starting point for developing a specific maintenance plan.

Who will be responsible for the maintenance of the recycling equipment? Assigning a specific individual to be in charge of all equipment maintenance will increase the likelihood that the recycling equipment will be maintained properly. If maintenance tasks are simply added to existing operator position duties, it is unlikely that they will be performed consistently. Therefore, a new position primarily responsible for equipment maintenance is likely the best way to ensure that the investment made in recycling equipment will continue to pay off in the long term.

Quality Control

The first stage of quality control is material sorting. For recycling to be both economically viable and to meet reprocessor quality requirements, the material input to any recycling process should be sorted to a level where there is no more than 5% by weight of the incorrect polymer or polymer containing unacceptable levels of contamination. Any more than this and the material downgrade means that it cannot be used in the same application and this is where the recycling chain starts to break down, with recyclate being “down cycled” to inferior applications until it reaches the final stage of disposal. At each downgrade in application, there is a reduction in material value and an increase in competition. It is unrealistic to expect a good level of material sorting without the widespread use of a classification system for plastics which identifies both a resin code and a recyclability code. The current situation is that there are many plastic items which do not carry any form of plastic identification/recognition and this severely hinders automatic sorting systems. A related issue is the marketing of packaging as “recyclable”. If all plastic packaging was, in fact, recyclable, there would be no logical reason why it could not be identified as such, and this would significantly ease the sorting of post-consumer waste. Beyond identification, automatic sorting of plastics is currently achieved most effectively by a sink-float process usually carried out in water. This is useful where there is a large proportion of two different plastic types which have similar density. At a smaller scale, the most common form of sorting is by use of some form of near-infrared spectroscopy (NIR) system which provides a quick and easy method of identifying many plastic types and grades. In general, the above systems give a good indication of the current plastic sorting methods. Automatic methods are continually being refined as the industry works towards minimizing the cost of recycling.

Material Sorting

The next logical step in plastics recycling machines is to save costs by opting for a more efficient and therefore more expensive material for recycling instead of separating material post-recycling. With the high cost of manpower and the high level of contamination with current dry material feeders, Vits is on the market with a new generation of melt filtration systems, offering a vast improvement on existing models with its automatic screen changer RSFgenius. This will no doubt be beneficial in the future of plastics recycling. The most prevalent method of material sorting technology amongst plastics recycling machines is still the hydrocyclone. With little change in hydrocyclone design over the last decade. This is unfortunate, as hydrocyclone separation of mixed plastics is not always possible and if possible, the purity of the fractions inadequately meets the specifications for the end product to be of commercial value. This is due to the fact that specific gravity is often very similar between different kinds of plastics and/or there is a sizable contamination of paper or plastic labels. The common practice with current methods is to market a system to a waste management company and then allow the company to take and landfill cheapest fraction of material i.e. PET bottle plastic and keep the money from the sale of the other end product. This defeats the purpose of wanting to recycle all materials and is no longer viable in many parts of the world where the cost of landfill has become prohibitive, some systems no longer possible to market. Intensity rare earth magnetic separators are a new method that is more attractively approaching commercial viability. The basic design exploited the fact that plastic is a non-conductive material and therefore there is a degree of electrostatic charging. This charging leads to a magnetic moment which is induced when the material passes through a magnetic field. This moment will cause a force on the polymer which has a linear dependence on field strength, material susceptibility and the rate of change of field strength with distance. Traditional magnetic separators have been unsuccessful in separation of plastics due to the transition of all but the cheapest consumer items in recent years from thermoset to thermoplastic materials. During its research Caleffi from Italy found that there is a range of Curie temperatures of ferromagnetic materials and formed a new design of magnetic separator in which the magnetic field could be fully utilized in separation without raising the temperature of the plastics to the point of thermodegradation. The ferrous materials used in construction of machines for plastic processing can also be removed using this type of separator. Ecomation Oy, a Finnish company is aiming to develop an optical method based around near-infrared identification of polymers. This too offers promising new technology for material sorting.

Contaminant Detection

A two belt conveyor system is used to spread the material across the width of the conveyor, and then allows a monolayer of material to pass under the NIR camera and illumination module. The NIR camera images the material and produces a monochrome image based on the intensity of light in the NIR region, while the illumination module provides an image for colour identification. The monochrome image is then analysed to detect individual granules of the contaminants by the use of edge detection algorithms. Since the edges of contaminant granules are not clearly defined in the NIR image, the original image is transformed using a Sobel filter to enhance the edge definition. A watershed algorithm is then used to segment the granules, and various other algorithms are used to define the properties of these granules. A region of interest (ROI) is defined over each granule, and then this ROI is expanded to incorporate the surrounding area. A pattern recognition algorithm is used to match the granule against a template in a contaminant library. If a match is found, the location of the granule is marked and the ROI is filled to prevent further analysis of the same granule. The colour image is then analysed to see if the granule is the same colour as the surrounding material. If it is, the surrounding material will form the sink product, whereas if it is a different colour the granule and surrounding material will form two separate products. If the contaminant granules are spread out over the whole width of the conveyor, it is possible to adjust the separation system so that the purest reclaimed material is produced alongside one or both edges of the conveyor, and the contaminants are deposited in the central area and removed sorts as to minimise loss of quality of the reclaimed material. This is achieved by choosing the locations of the contaminant and product interfaces, and then using data from the image analysis to guide the position of a separation barrier. This method has the potential to dramatically improve the quality and cost efficiency of sink-float separation processes. Other work at WMPI has involved the use of similar NIR systems for detection and identification of contaminants in a German funded project to develop on-line quality control methods for the food industry, a system to detect PVC contaminants in scrap plastic material, and the development of an automated method of identification and removal of metal contaminants in a polymer processing extruder.

In plastic recycling, an important step in improving the quality of the processed reclaimed material has been the development of sensitive and efficient methods for on-line quality control to identify and remove contaminants. One such method, developed by WMPI, uses a near infrared (NIR) spectroscopic imaging system for automated detection and identification of contaminants (typically dark coloured plastics) in a sink-float separation process. A simplified diagram of the system is shown in Figure 5.2.

Output Assessment

The plastic recycling industry is proving to be a multifaceted space. In recycling of each post-consumer plastic bottle, process engineering must consider the physical, chemical, and toxicological characteristics of the bottle. The reason for this is simple – the attributes of the incoming material may have changed to a certain degree from its initial state. Because bottle grade resin is the most valuable resin in the PET, HDPE, and PP industries, it may be advantageous to upgrade the recycled stream to this level. Therefore, the best end-of-line strategy in recycling materials such as PET derived from post-consumer bottles is an analysis of the efficacy of removal of bottle label and cap colored inks, followed by a color sorting process which differentiates material into clear and non-clear resin. A similar logic can be applied to HDPE and PP recycling. Therefore, enhancement of recycled resin value can be achieved through one or a combination of these techniques in output assessments. Due to the fact that such process enhancement can add value in the plastic recycling stream, accurate determination of whether enhancement has actually been achieved is a critical facet in cost-benefit analysis of output assessment technologies. This may be the case where, at present, technologies offering impressive solutions are pushed into industry adoption when the algorithms are not yet optimized to provide worthwhile results. This type of progress assessment is generally classified as on-line quality control and is traditionally performed with off-line analytical techniques and statistical analysis of process capability. The cost of such quality assessment can vary largely, and the possible precision of resin property may depend on the demands of the plastic recycling industry. For specifications where a broad and forgiving definition of resin quality exists, a technique such as near-infrared analysis can be employed to provide a quick analysis of resin type. When resin type specification boundaries are quite close, it may be necessary to use a more sophisticated technique such as differential scanning calorimetry (DSC) to test for polymer thermal properties. DSC measures the energy input to a material as a function of temperature. On-line DSC is now available; however, it has not yet been employed for quality assessment in the plastic recycling industry.

Troubleshooting and Maintenance

Common issues Troubleshooting with extrusion equipment is typical, as the process involves many variables. Sometimes a process screw may produce too much or too little output. A number of things can affect this. The heater controls may fluctuate and cause temperature variation at the barrel zones, thus causing irregularities in the plastic melt. The screw itself may have wear from abrasives in the plastic. This wear will cause differences in output because the channel depth and the flight clearances will increase. A worn barrel will have the same effect. The screw rpm can slip on electrically driven machines. Lastly, it is important to make sure that the material being used has not been changed and that the proper drying procedures for that material have been followed. Often times the problem can be solved while referencing back to these points.

Common Issues

Measures to correct these issues include a change to higher quality, wear-resistant components, and reduction of screw speed and torque. It is possible to recover some worn components by reducing screw recovery and increasing barrel temperatures, but this is only a short-term solution and full recovery may not be possible.

High screw speed and torque with commodity plastics can cause screw and barrel components to wear quickly, and abrasive wear will result in increased screw slippage and reduction in output, often with occurrence of melt temperature surging. This will also be the case when using fillers or reinforcing agents. Screw slippage can also be caused by worn or damaged thrust bearings.

Common issues with extruders are also similar to most other processing machinery. These include fluctuations in operating torque and speed, inability to reach or maintain set operating conditions, and excessive screw or component wear. The root causes of these issues often stem from the material and the design of the screws and components. It is likely that your machine was running well when processing a different material.

Regular Maintenance Tasks

– Establish a weekly, monthly, and yearly maintenance schedule with daily checks to be performed by the machine operator. – Keep a comprehensive log of data on machine usage and faults to enable problems to be detected early. – Provide easy access and use of ergonomically designed tools to prevent many operators from neglecting minor maintenance tasks. – Train maintenance personnel according to the machine manufacturer’s recommendation. More intense training is recommended for larger and/or more complex machinery. – Scheduled machine downtime for maintenance may not be popular but is by far the most cost-effective method of maintenance in the long term. – Consider modifying machine or tool designs to improve ease of maintenance, eliminate awkward or dangerous tasks, and improve access for operators.

Maintenance of machines is vital to ensure efficient and economic operation. A poorly maintained machine will have a shorter life, have frequent breakdowns, and consume more energy. The following are some general recommendations for maintenance tasks that should be carried out on recycling equipment:

Safety Guidelines

It is essential that you follow the operating instructions of the supplier when using the machine. Guard or fencing removal and cleaning routines must be a part of the standard operating procedure of the machine. How often will depend on the rate of cleaning required. This is likely to be required on a less frequent basis, but it is essential that an LOTO procedure is devised specific to each individual machine cleaning operation. A risk assessment should be carried out for all tasks involving interaction with the machine that are identified as being hazardous. Workers must be competent and adequately trained to use the machine. This is a requirement as specified by the PUWER regulations. An adequate level of training will ensure that the machine is utilized in the correct manner and maintained to a satisfactory standard. Juice recommends that training should include an element of both theory and practical sessions, which will also be used to assess the competence of the trainee. This may involve some form of examination to test trainee knowledge. Always ensure that operators are aware of the location and operation of all relevant emergency stop buttons. An emergency procedure must be detailed for all tasks involving the use of the machine in the form of a job-specific risk assessment. It is important that the risk assessment is clear and easy to understand, ensuring that all hazards are identified and suitable method of risk elimination specified. Should any task be identified as having a high level of risk, a decision will need to be made as to whether it is essential to the task to proceed. Where possible, hazardous tasks should be avoided. Fall-back procedures must be put in place and a level of preparation made. This will include an assessment of what the possible emergency scenarios may be and how these can be resolved with minimum risk to the personnel involved. Measures to mitigate identified risks may include a modification of the machine or a temporary change in the working environment. Emergency procedures must be briefed to all involved personnel and it will be a requirement for all procedures to be both documented and regularly reviewed.

Personal Protective Equipment

The following recommendations are intended to be used as a guide for the type of PPE to be used in different recycling situations. It is imperative that the user conducts a thorough risk assessment to identify potential hazards and determine the exact type of PPE that is required. This is beyond the scope of this document, but the following information may be used as a reference for a PPE risk assessment.

Personal protective equipment (PPE) in the workplace should be considered secondary to engineering controls and safe work practices; nevertheless, its importance should not be underestimated. This is especially true in recycling operations where PPE can be a worker’s last line of defense. It is essential that the type of PPE prescribed is appropriate for the hazards faced in the job. Employers have a duty to provide PPE to employees and ensure its use. PPE must be properly maintained and of a prescribed standard. It is the responsibility of the employee to ensure they use the PPE as instructed in accordance with their training.

Emergency Procedures

It is also important to have a suitable first aid and/or fire fighting kit nearby. This will facilitate quick and efficient action in the event of an injury to personnel or in an attempt to save the machine from further damage.

For emergencies involving damage to the machine or something that is in or on the machine, quick action is vital in order to save the machine and surrounding equipment. In this case, hitting the emergency stop buttons located on the machine is not the best course of action, as this will not prevent further damage should the cause of the emergency still be engaged, i.e. the screw on an extruder or the injection ram on an injection molding machine. The best action in this case is to allow the machine to cycle itself to a safe state. This is particularly easy with injection molding and extrusion machines, as the cause of the emergency will still be engaged but the cycle can be easily stopped and the screw or ram can be reversed out. With this in mind, an emergency involving this type of machine should be stopped by isolating the electrical supply to the machine as soon as it is safe to do so.

In the event of an emergency, the immediate actions of the operator can prevent further injury or damage to the machine. There are two different kinds of emergencies: those that involve injury to personnel and those that do not. In the event of an injury to the operator or other personnel, switch off the machine by hitting the main isolator switch. This is a large red switch located on the electrical control cabinet. If possible, do not move the injured person until it is safe to do so without causing further injury. Persons not familiar with the circumstances of the injury should not interfere with any controls or the electrical supply to the machine until it is safe to do so.

Environmental Considerations

An in-depth understanding of the recycling process, the available options, and the potential environmental impacts is crucial in assessing the green credentials of plastic recycling. There has been little research published to date on the life cycle analysis of plastic recycling. Even the wider implications for the entire waste and resource management of plastic waste are little understood. It is crucial that recycling technologies are compared to the disposal alternative in order to set into context the relative implications for the environment. Life cycle analysis is a study that evaluates the environmental impacts of a product from its manufacture, through its use phase, and its “end of life” including disposal. Although in-depth analysis of individual recycling machines is beyond the scope of this report, the analysis of the wider context into which the machines are placed is crucial in understanding the green credentials of recycling.

Waste Management

At the end of the machinery’s service life, the equipment itself is waste to be managed. Careful planning in equipment design can make disassembly and separation of materials easier. This will make recycling and/or reusing the materials more feasible. Bonded materials or mixed plastics and non-plastics should be avoided where possible. Due to the materials involved, the longest-lasting and most durable equipment is not always the best choice from an environmental standpoint. If a plastics recycling system can be made into a functional disposable product, the environmental opportunity cost may be lower. And finally, the most environmentally friendly way to deal with equipment waste is to have planned obsolescence and a replacement plan.

Various waste management options can be implemented during and after the service life of a plastics recycling system. During the service life of the machinery, waste reduction can be achieved primarily through process modification. Recycling of waste plastics inevitably creates some unusable material. Generally speaking, minimizing the number of processing steps and maximizing the amorphous regrind output will keep post-processing to a minimum. Optimization of the processing conditions to produce a cleaner and more pure regrind will also reduce waste. If foreign plastics or materials can be sorted from the input material before it enters the recycling stream, this will greatly reduce the amount of waste created. Due to the high cost of waste plastics, many recycling system processors are very reluctant to dispose of any material. This often leads to the accumulation of waste material, which should be kept to a manageable amount. If a reprocessing objective can’t be met, a decision to sell the waste material for use in an application not possible with the current system can be made. In some cases, it may be possible to use the waste material as feedstock for another recycling system. An option of last resort for post-processing waste may be landfilling or incineration. If waste material must be disposed of, incineration provides a more environmentally benign alternative to landfilling due to the pollution associated with burning hydrocarbons being spread out over the entire earth in the form of CO2. Landfilling tubs of liquid waste is a waste minimization option to reduce the amount of waste material that must be incinerated or landfilled. Any waste plastic from a recycling system can be chopped or melted and entered into the plastics industry’s wide-scale recovery system often called “back to resin” processing. Any waste reduction that cannot be avoided should, at the very least, be disposed of in an environmentally responsible manner.

Emissions Control

The primary environmental considerations in the use of plastics recycling machines centre on waste management and emissions control. Although such machines are designed to produce as little waste as possible, undesirable by-products such as discarded contaminated waste and cleaning chemicals are often produced. The waste management of such materials will usually be the same as the recycling of the plastic material being processed. Emissions control involves the monitoring and control of air and water emissions. Air emissions are primarily in the form of volatile organic compounds produced during the extrusion and manufacture of plastic sheet or moulded plastic products. Incineration and thermal oxidation are widely used methods of emissions control, and one supplier of emissions control equipment to the plastics industry is considering developing a system specifically for the control of VOCs from plastic manufacturing processes. Monitoring and control of water emissions is important if the plastic recycling machine is cleaning, washing, or using solvents to eliminate contaminants from the plastic material. For instance, using detergents and solvents to clean and remove paper labels, dirt, or adhesive from PET bottles in a sink float system will produce wastes requiring treatment, with water often being used in the process. Such contamination of wastewater in plastic washing processes can be difficult to detect, with the waste not necessarily being a different color than the clean water. A cost-effective method of monitoring water emissions is to measure the Biochemical Oxygen Demand (BOD) and TOC levels of the wastewater. Although BOD levels can be tested and controlled with a simple water treatment system, detecting the different contaminants to determine the specific treatment the wastes require can be difficult.

Cost Analysis

The first method used for the recycling of waste plastics to form a useful product is the Messmer Plan. Due to the low cost of implementation, unskilled workers, and low energy input, the investment is not high. Injection and compression molding are used to form the products, but due to the constraints of these processes, the scope is limited to simple non-durable products and it is not possible to reform a vegetable rack or milk crate to their original standard. A cost analysis of the entire process has not been conducted due to the variable cost of labor and energy.

It is important to determine the costs involved in implementing a recycling idea. This will determine whether the comprehensive recommendations are practical. The initial investment in support of the ongoing statements on the recycling of waste plastics to useful products.

Initial Investment

Initial investment covers all the expenses when a company decides to open or start a project to ensure the project can run smoothly. Full preparation must be done with careful planning on initial investment. Initial investment can be categorized into a few items such as the cost of investment for the project, operating capital, and additional investment. The cost of investment for the project is one of the biggest expenses when a company decides to implement or start a new project. It is the amount of money that is used to actually start the project. In terms of purchasing the plastic recycling machine, the cost can differ depending on the technology and types of machines that the company wants to purchase. Usually, to purchase high technology machines, the cost will be higher compared to purchasing lower technology machines. But high technology machines are more efficient for operators compared to lower technology machines. The machines can produce high-quality recycled plastic products. The basic types of plastic recycling machines usually cost around $1000-$50000. The machines are cheaper compared to complex and high technology machines. High technology machines use Pro-Sort, Optical, and color plastic specific systems. This system is more advanced compared to traditional systems that can differentiate plastics based on resin type. The price difference between PET (CR-1100-PET) and PP (CR-1250) is $175,000 – $200,000 for Resin Sort Systems. Although both technologies are functional, the higher-priced machine is more efficient and profitable. Operating capital is used when the company buys and operates the machine until it produces the recycled plastic product. The operating capital is expended for a certain period. This capital is used to finance the ongoing cost of operation. Ongoing operation costs include labor costs, costs of repairs and maintenance of machinery, and utility usage charges such as electricity, water, and telephone. These costs are incurred as the cost to produce recycled plastics. Additional investment is an investment made by the company after a project is completed. This investment is for expanding or adding more features to the existing project to make it more efficient and productive. It can be an additional investment in buying new technology for recycling machines, hiring more workers, or finding a new location to expand the project.

Operational Expenses

Step recycling equipment can also be simply evaluated in that the cost per pound of finished product can be added to the product output rates. This sort of equipment is often forgotten in that it can generate high costs due to having much longer processing times compared to an extruder. Providing a specific explanation of expenses to the customer is often wise, as this will help in promoting the long-term use of equipment and ensure customer loyalty. Step machine designs can also factor in expected product rate increases with minimal expenses by converting to a larger size machine. This type of scenario can be shown with a separate evaluation comparing expenses using only one machine compared to a higher product rate using future machine purchases.

Extruder type recycling equipment is fairly simple to evaluate in terms of operational expenses since the cost of hourly operation can be precisely determined through the use of a power purchase agreement. Since power purchase agreements have fixed costs for the life of the equipment, current expenses are added and divided by the number of hours of usage to find the cost per hour. This cost can then be multiplied by the yearly operating hours plus a small amount of money for maintenance costs. The expected equipment life can also be factored in to determine the cost per pound of electricity. When considering equipment, it is often desirable to compare the cost benefits of using a direct drive machine compared to a belt-driven machine using a large reduction motor.

Every recycling equipment manufacturer should thoroughly evaluate operational expenses when making an offer to customers. This is often more important to the customer than the cost benefits of making a higher priced initial equipment purchase. Unfortunately, operational expenses are relatively easy to come by due to the fact that they are based on real costs, while cost benefits are often speculation based on future market conditions. To accurately evaluate expenses, there are two basic scenarios that should be considered. One is the expenses to operate equipment at the current processing rate, and the other is the expenses based on a projected processing rate. The projected rate will often require more equipment than is currently needed, so it’s important when evaluating expenses to distinguish between the two.

Future Developments

The final method is the development of new recycling plastics. This method is usually the result of new plastics being developed, as mentioned earlier, and the transition to using better recycling plastics and new recycling methods for that plastic.

An alternative to increasing the quality of recycled plastics is the method of testing new recycling plastics with various methods with the hope to discover the best recycling method for a specific type of plastic. This is another ideal opening as there are new plastics being developed every day with no knowledge of the best method to recycle that plastic. The method the Proto 6 has endeavored to test various recycling methods, so it’s a method that can be an example for possible future developments.

In efforts to make plastics cleaner and recycled plastics, it’s beneficial to be compatible with future technology methods. An example of this method and a way of cleaning recycling plastics is the use of ionic liquids. Ionic liquids are solvents that can dissolve polymers by forming a special type of liquid in which, if a polymer is submerged into the liquid, it will break up into its constituent monomers. A machine that can create a better form of recycling and a cleaner recycling plastic method would be a modified shredder/extrusion machine with very low emissions of volatile organic compounds. This machine is typical of what is available in the present day, so when it comes to providing cleaner plastics, the method has not yet been developed. This is an ideal opening for providing a new method to clean recycling plastics.

An alternative to increasing the rate of recycling would be the development of an energy-efficient machine that is capable of various recycling methods. This idea aligns with the steadily increasing development of renewable energy and its desired implementation on a global scale. A machine that utilizes green energy sources is somewhat a reality with the surplus and low energy requirements of the Proto 6. Steps to make the Proto 6 completely energy self-reliant with the use of solar energy would potentially create an alternative form of recycling some decades in the future. Steps towards green energy are also beneficial to increase the quality of recycled plastics.

To increase the rate of recycling, one ideal development would be to create a higher capacity version of the Proto 6 with the ability to produce a 24-hour day’s worth of plastic recycling. This would allow the Proto 6 to compete with current-day large-scale shredding and extrusion machines that have high output rates, with a method that can provide cleaner recycling and produce a sizable income. High output rates are sought after in today’s society and are often the reason why the purest forms of recycling are overlooked. Creating a higher capacity Proto 6 would provide an alternative method of high output rate recycling that is clean and eco-friendly.

This research has led to the development of two concepts for future recycling machines, which are technology advancements and following industry trends that aim to increase the rate of plastic recycling to help preserve the environment. These concepts hope to be a catalyst in creating global sustainability. Technology advancements in the recycling machine may not be a necessity to recycle plastic, but its implementation should not be forgotten. Technological advancements in recycling machines should aim to increase the rate of recycling and/or the quality of the recycled plastic.

Technological Advancements

The most promising of these technological advancements is development in the area of feedstock recycling. The aim is to copy the process of cracking crude oil in a fluidized bed catalytic reactor to produce basic hydrocarbons that can be used to make new plastic. This is the first feasible method to recycle mixed or heavily soiled plastics, but there are still many years of research and development before this technology will be implemented on a commercial scale.

Initial work has been done in the area of process control using logic to switch between barrels on an extruder to maintain a set product temperature and viscosity. More recent efforts involve the development of intelligent screws that will alter the energy put into the plastic depending on pressure readings and maintain a constant melt temperature using various zones and a cooling system.

Development in technology encompasses many broad areas, such as intelligent processing, increased efficiency and effectiveness of processes, process control, material identification and sorting, higher product quality, and increased equipment life. There are many processing machines in operation that have been in service for 25 to 30 years and still produce acceptable product. However, with the state of the industry today and the implementation of tighter quality control, longer service life of equipment, and sustainable manufacturing, this machine is not acceptable if it uses excessive energy, produces off-spec product, and has a negative environmental impact.

Industry Trends

The market demand increase will be driven by today’s post-consumer plastics material recovery programs. According to the American Plastics Council, post-consumer plastics collection has increased steadily over the last two decades with an average annual rate of 63% since 1990. This figure reached 1.4 billion pounds in 1999 and it is expected to increase dramatically with new pledges by companies such as Coca-Cola, Nike, and Procter & Gamble to use recycled materials in their products. The increased demand will also be met by exports to China and other countries in Asia where infrastructure for the manufacture and collection of recycled materials still lags behind North America and Europe. In order to continue competing with cheap virgin material manufacturing in these regions, today’s North American and European compounders must produce high quality wide-spec materials at low costs from low-cost feedstock. This will be accomplished by new plastic recycling machines and process additive equipment to reduce production costs, and also by improved scrap material logistics to increase the utilization of recycled materials. An example of such industry activity to develop new wide-spec materials and increase utilization can be seen in the new initiatives by the North American automotive industry. High global competition and oil prices have led to these initiatives to lighten vehicles with plastics and increase usage of recycled materials, where cost savings will be directed to higher R&D investment and reinvestment in new plastic parts production.

It is clear from figures from the Society of the Plastics Industry, for example, that the dominant market for a particular plastic recycling machine configuration consisting of a specific combination of all machine functions, the baseline configuration, will not be sufficient to meet future market demand. This configuration has been the baseline production system for near prime materials (which represents roughly 80 percent of the plastics market) in the past. Though the configuration will continue to play an important role in meeting the projected rise in demand for near prime materials, increased efficiency will be required to free capacity for the production of wide-spec materials to meet the increased demand without drastically reducing the price of near prime materials due to an oversupply. High efficiency recycling machines suitable for near prime production as well as wide-spec will also be considered for purchase to replace existing machines of the same function to reduce energy consumption. Finally, total production system combinations of new recycling machines and an increased number of process additive equipment will also be considered to introduce new innovative wide-spec materials to the market and maximize the compounder profitability from post-consumer or post-industrial recycling.

<p>The post Comprehensive recommendations for plastic recycling machines first appeared on JIANTAI.</p>
